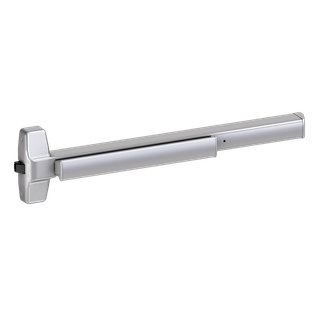

78 Series Push Pads

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs and finishes
• Available in 3’ and 4’ lengths that are field sizeable for single and double door applications

• ANSI/BHMA A156.3-2014 Grade 1 certified
• ANSI/UL 10C (fire rated only)
• ANSI/UL 305
• CAN/ULC-S104 (fire rated only)
• CAN/ULC-S132

Refer to the Von Duprin 78 & 75 Series Exit Devices catalog for more details.

The 78 Series offers a solution for most single, double and double egress door applications.  Below are the available device types:

• Rim, no suffix
• 27: Surface mounted vertical rod (SVR)
• 47: concealed vertical rod (CVR)

Devices can be ordered fire-rated by adding  “-F” to the suffix.

The 78 Series is available less trim (LT) and several versions of the exit trim models listed below:

• 110
• 374
• 376

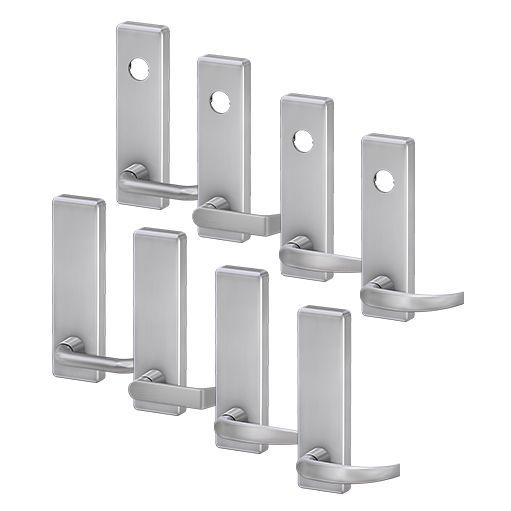

• 780

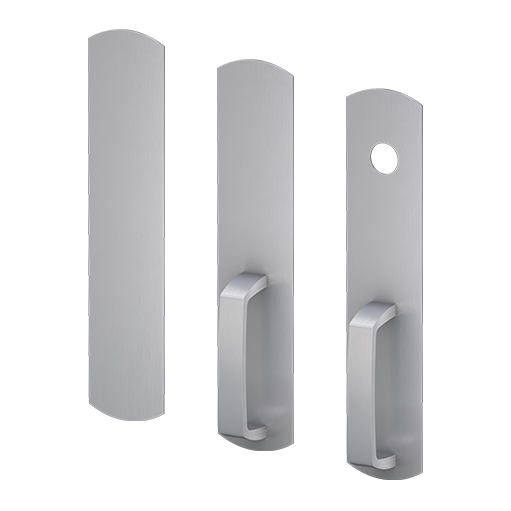

• 785

• Exit Only (EO)

• Dummy trim (DT)
• Lever (L)
• Lever, blank escutcheon (LBE)
• Lever, dummy trim (LDT)
• Lever, night latch, key retracts (LNL)
• Night latch, key retracts (NL)
• Night latch, optional pull (NLOP)
• Turn lever (TL)
• Turn lever, blank escutcheon (TLBE)

• 605: Bright Brass
• 606: Satin Brass
• 612: Satin Bronze
• 619: Satin Nickel
• 625: Polished Chrome
• 626: Satin Chrome
• 628: Anodized Aluminum
• 630: Satin Stainless Steel
• 643E: Aged Bronze
• 710: Duranodic Dark Bronze
• 711: Black

The 78 Series can be customized to meet a variety of facility needs with several mechanical, electronic and finish options.

Mechanical Options

• CD: Cylinder dogging (panic only)
• HD: Hex dogging
• LD: Less dogging
• WH: Weep holes, drainage (weep) holes in mechanism case
• AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
• LBR: Less Bottom Rod, Panic and Fire Rated

Electrified Options or Electromechanical Options

• LX:  Latchbolt monitoring signals use of an opening
• RX: Request to exit
• QEL: Quiet electric latch retraction, electronic latch retraction with limited operational noise
• ALK: Alarm kit, unauthorized opening triggers horn
• CON:  Allegion Connect, Common connectors to connect various door hardware all the way to the power supply
• E780 / E360: Electric locking and unlocking trim, remains latched while unlocked

The 78 Series offers many accessories to meet evolving needs of any facility; refer to the pricebook for a complete list.
